New Build AV Installation

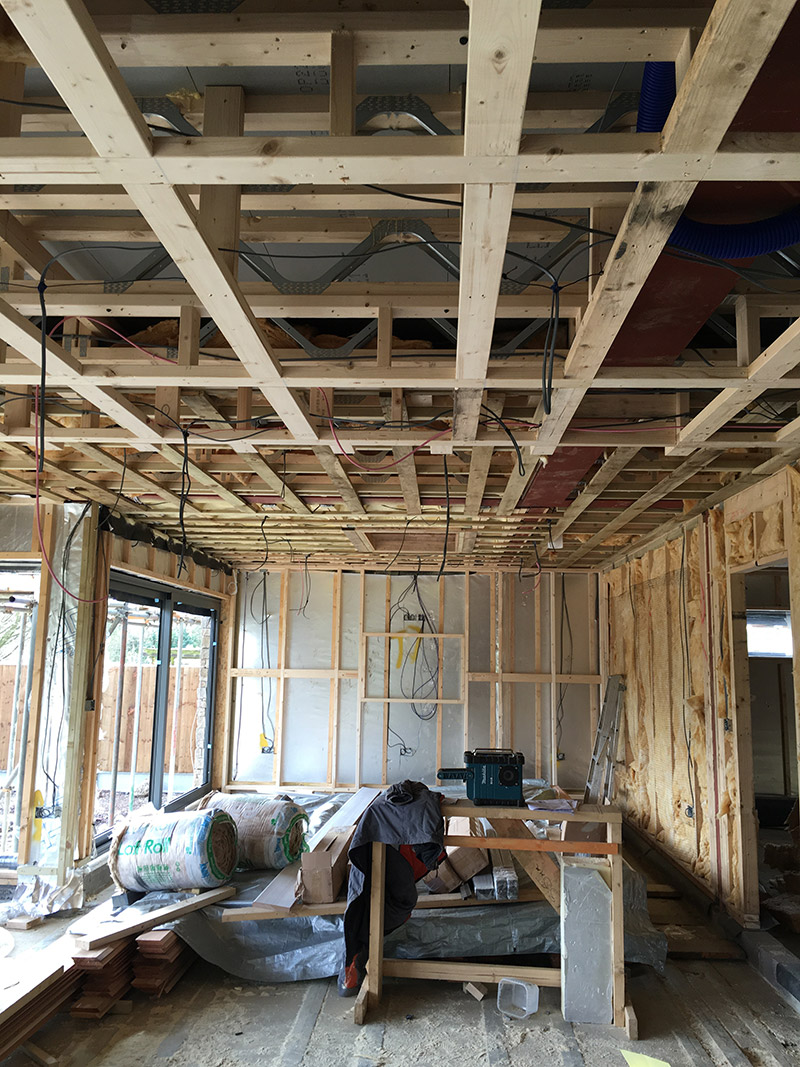

From the early stages in Construction, Cabling was installed for Music Data and TV.

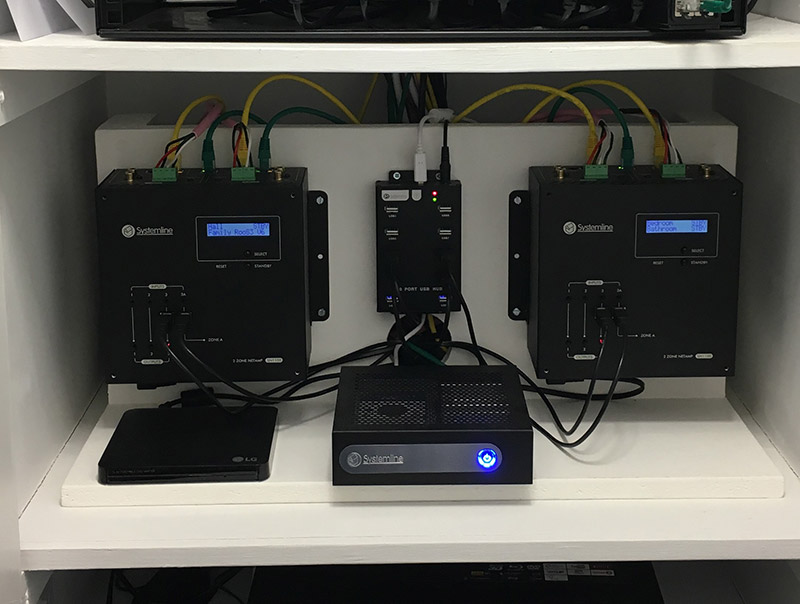

All cabled back to Media cupboard that was to house the kit for two Sky Boxes and Blue-ray Player fed into a 4 x 4 Matrix system, this allowed any of the four inputs to be viewed on any of the four TVs with three other guest rooms cabled for Single Sky Box and Freeview.

A Systemline S7 Music System also Installed for Music and TV audio.

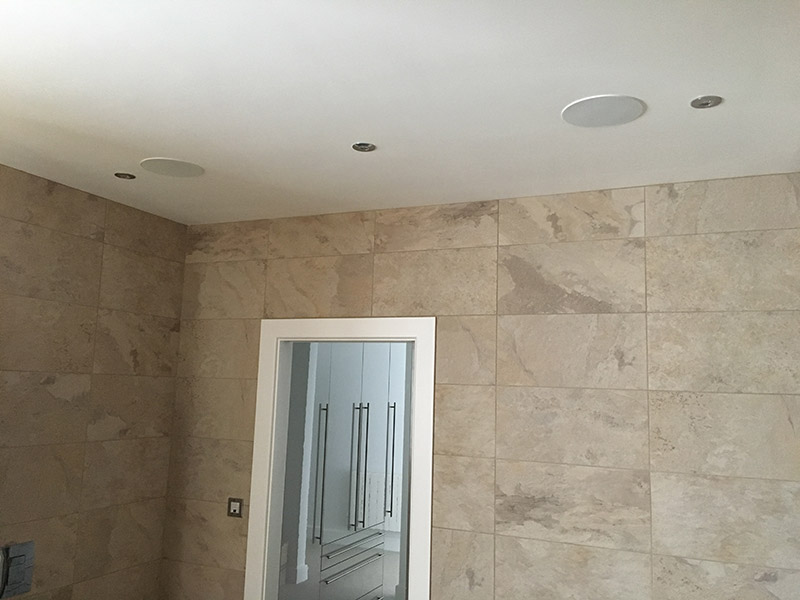

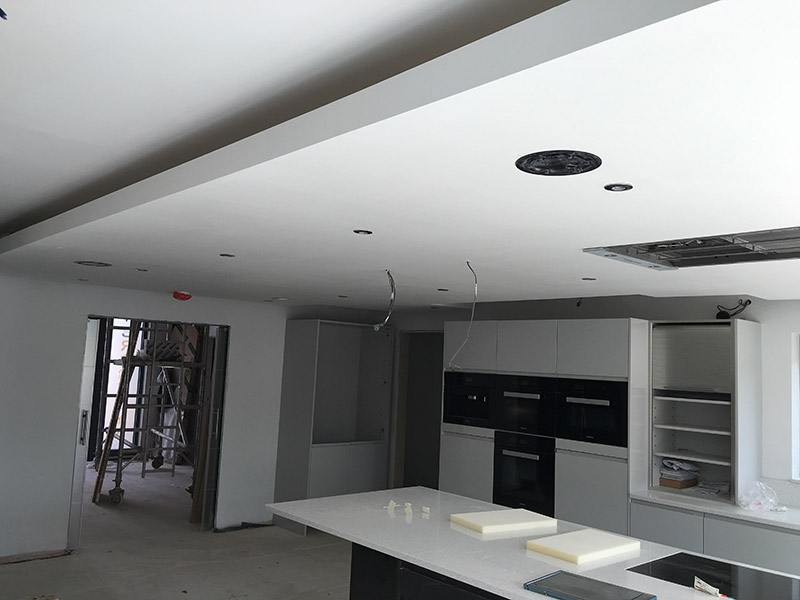

Bedrooms Installed with Ceiling speakers. Hallway, Family room, Bathroom installed with ceiling speakers and in-wall control panel. Lounge installed with Front in-wall speakers and rear ceiling speakers with additional power AV Amplifier.

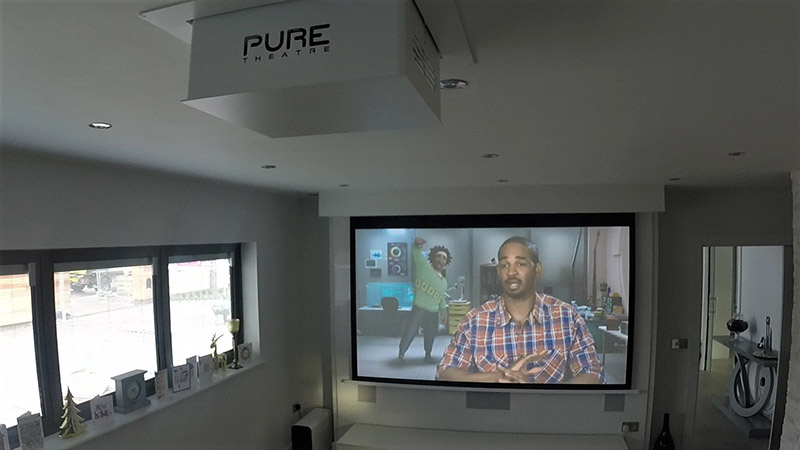

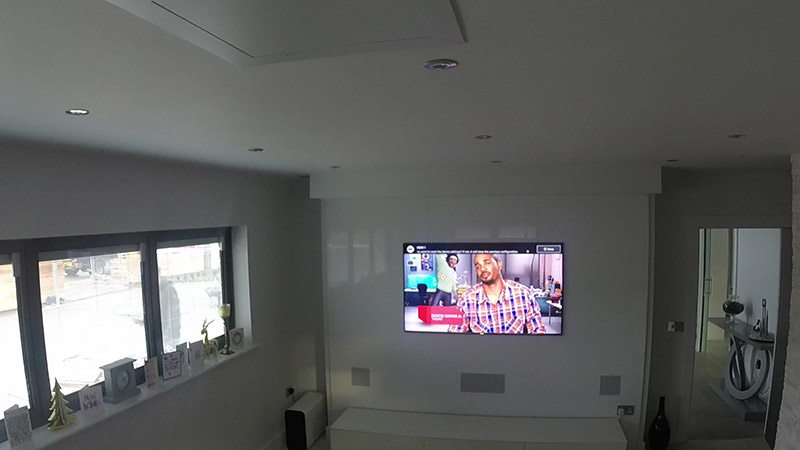

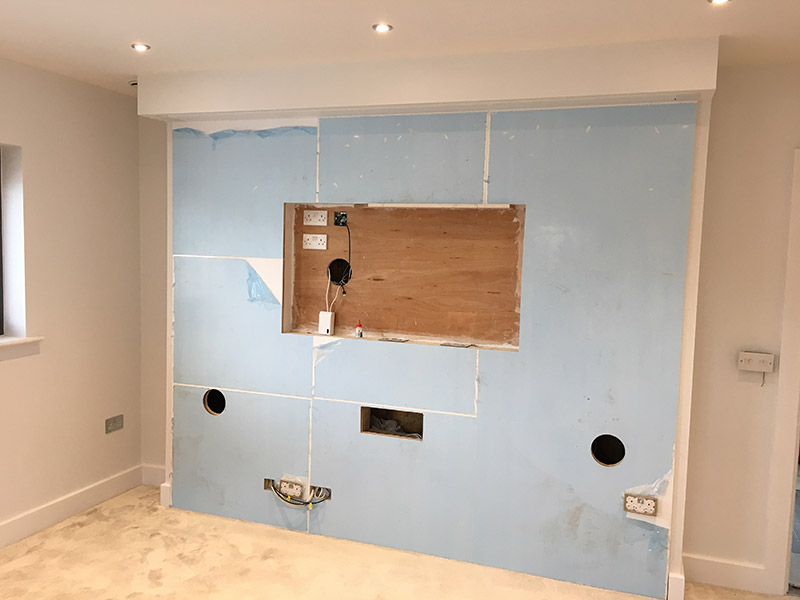

Lounge TV 65” Recessed into wall and installed 106” in ceiling projector screen, HD Projector installed with in ceiling projector lift.

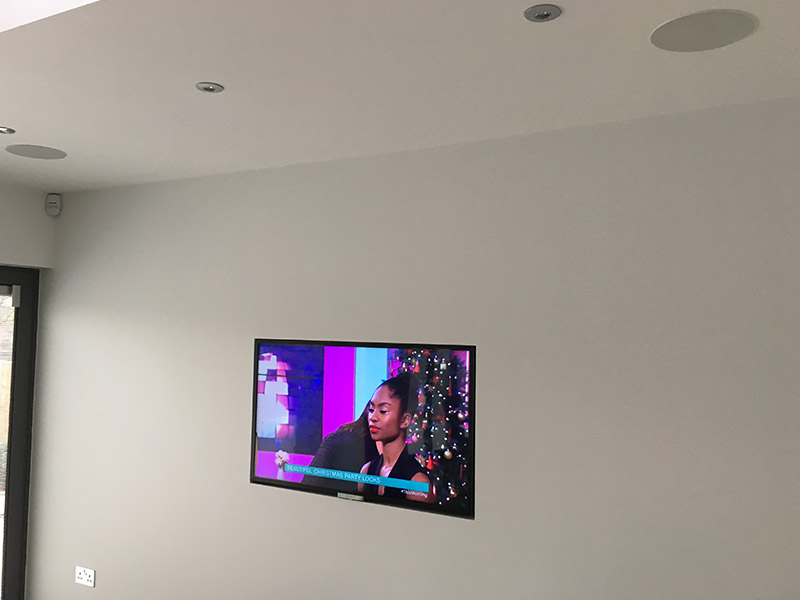

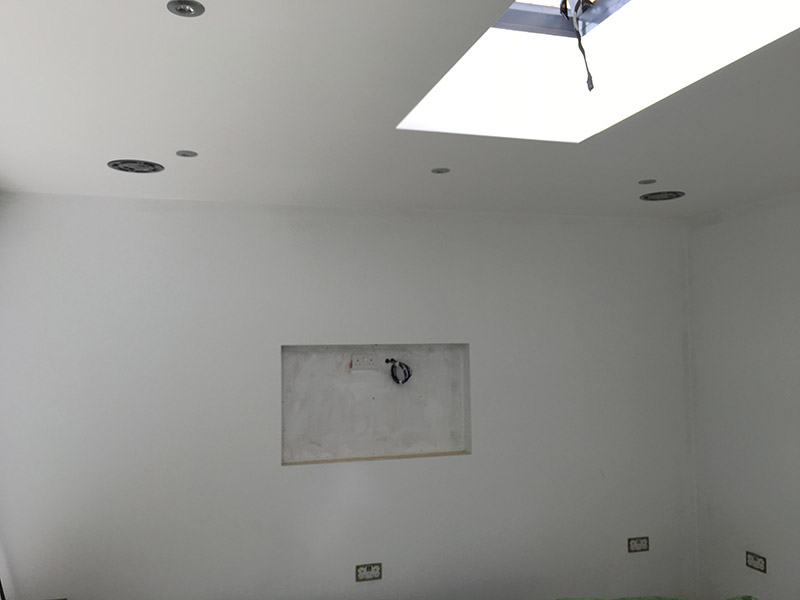

Family room TV 55” TV recessed into the wall with TV sound from Systemline S7 and four ceiling mounted speakers.

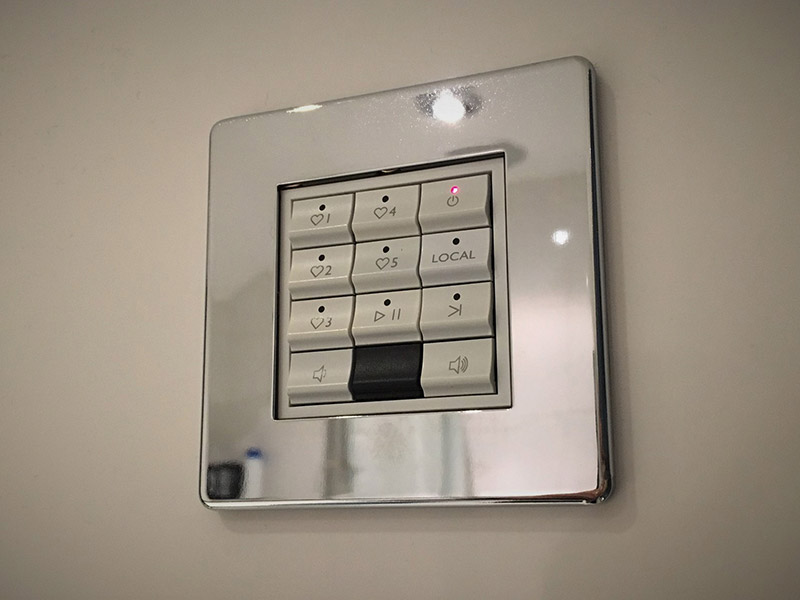

Music system though the entire house from Systemline S7 Controlled by in wall controllers or app. My customers entire music collection is stored on the S7 Server and available in high quality FLAC Lossless audio to every room, as well as internet radio and streaming services .

To ensure all the tech remains connected two ceiling mounted WiFi access points were installed to provide reliable Wi-Fi over the entire house

Equipment

  • Q-Accousics Q Install QI65P Ceiling Speakers

  • Q Acoustic 3070S Subwoofer

  • Monitor Audio CWT140, CWT160, WT150LCR In wall speakers

  • Denon AVR-X2300W AV Amplifier

  • Blustream HMXL44-KIT HD-BASE-T 4×4 HDMI Matrix

  • Systemline S7 Music system

  • BenQ HD Projector W3000

  • Pure Theatre Projector Lift

  • Sapphire electric recessed screen SESC240BWSF-A2

  • Ubiquiti UniFi UAP‑AC‑LR Wi-Fi Access Point
